The series MWFS Microwave Solids Flow Sensor detects moving solids utilizing microwave high penetrability and the Doppler effect.
The sensing head transmits microwaves toward the target material.A portion of the microwaves are reflected back to the sensing head and analysed as to whether they are from a moving or stationary object.
It is best suited for detecting such materials as powders, granules, etc, moving through a vacuum pipeline.
Features Data of MWFS
Operating Voltage: adaptive 20-35VDC, 30-250VAC
Output: relay DPDT (Double Pole, Double Throw)
Output capacity: 250VAC, 6A
Indication of level and power: LED green, ed and yellow
Measuring range: 0-1.2m
Frequency: 24.576 GHz
Ambient temperature: -40 to +70°C
Sensitivity: 0～15 class
Measuring reaction: less 0.5.s
Housing / probe: Aluminum ( Stainless is optional) / PTFE
Process temperature: -40…260°C( Special High temperature)
Process pressure: 0.1~2.5 Mpa
Adjustable on delay timer: 0.5～30s
Electrical connections: M20X1.5
Process connections: Threads G1 1/2A
Protection class: IP67

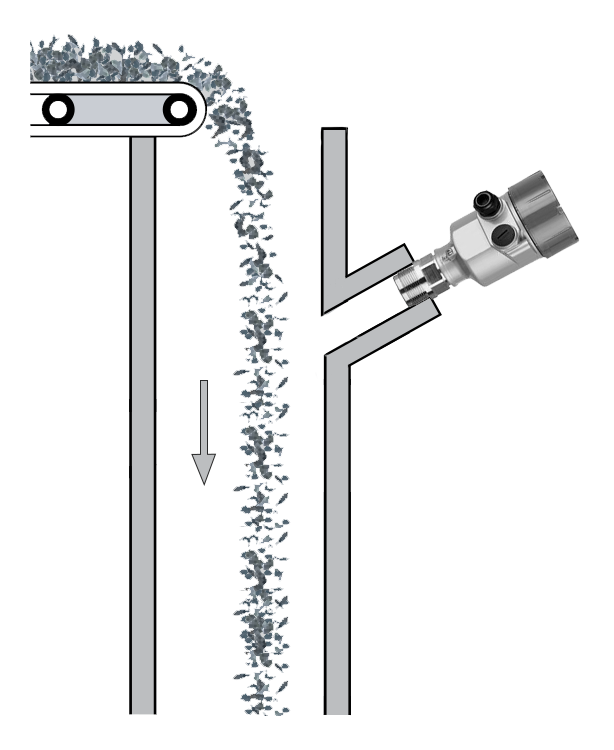

The Microwave solids flow sensor is ideal for monitoring the flow of bulk solids in vacuum pipelines, ducts, air slides, gravity chutes, feeders and at transfer points in vibrating chutes, conveyer belts and bucket elevators.
