Characteristic
Adopt high-strength aluminum alloy precise die-casting shell, with strong impact resistant capability.
The shell has high protection level, good sealing, and can be used in harsh environment.
Large contact capacity, sensitive action and reliable performance.
With waterproof wiring cavity, wiring is convenient.
● Ambient temperature：-30℃~75℃
● Relative humidity：0~80%
● Atmospheric pressure：80~110kPa
● Output mode and quantity：1x NO, 1 x NC
● Contact capacity：AC380V 10A
● Initial position：Touch wheel touch the lower surface of the upper conveyor belt
● Action angle：20°±2°, dual directions
● Limit angle：75°
● Protection level：IP67
● Weight: 4 kg
Its suitable for various environments, especially in coastal, wharf, power plant, cement plant, mine and other occasions. This model is not limited to belt width;

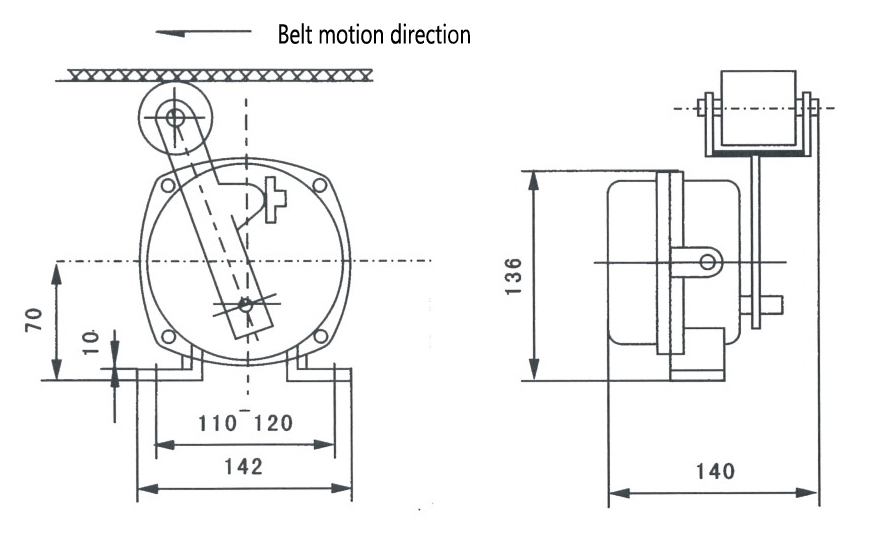

Material Flow Detector, ROLLER TYPE
The Roller model is not limited to belt width and has better protection and is suitable for various environments, especially in coastal, wharf, power plant, cement plant, mine and other occasions. |

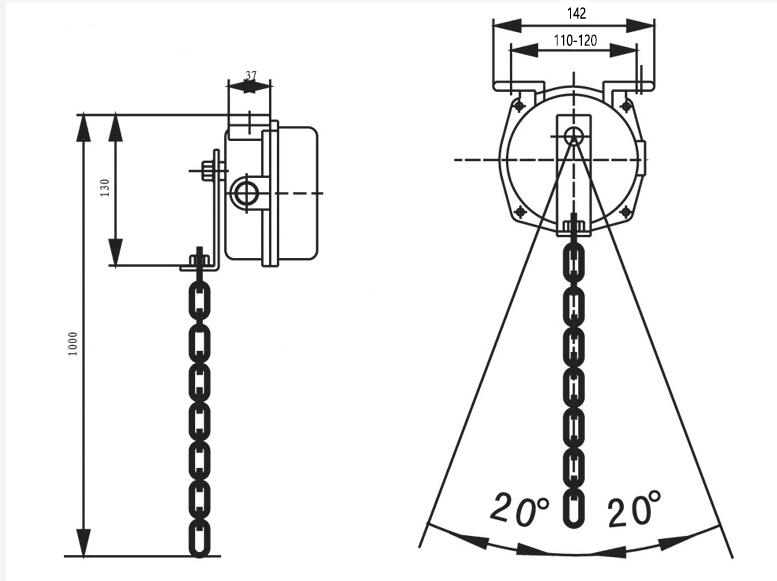

Material Flow Detector, CHAIN TYPE
The chain ball is in contact with the material, which reduces the direct impact of the material on the detector and prolongs the service life;
|
 |
 |
