Pneumatic Hammer series BVS
|
|
|
|
|
|
|
|
Pneumatic Hammer series BVS
|
|
|
|
BVP series pneumatic hammer type vibrator for high strength aluminum alloy. Main structure is composed of hitting a gas chamber, inside the wearing parts, such as no spring and can any place, any direction installation. The use of compressed air driven indoor hit a reciprocating motion and produce a regularity of vibration, damage of bridge plug phenomenon excellent results. The vibration of the vibration strength and frequency by adjusting the pressure and flow of compressed air to control, and can be instantly start and stop work.
|
|
|
BVS series pneumatic hammer type vibrator for high strength aluminum alloy. Main structure is composed of hitting a gas chamber, inside the wearing parts, such as no spring and can any place, any direction installation. The use of compressed air driven indoor hit a reciprocating motion and produce a regularity of vibration, damage of bridge plug phenomenon excellent results. The vibration of the vibration strength and frequency by adjusting the pressure and flow of compressed air to control, and can be instantly start and stop work.

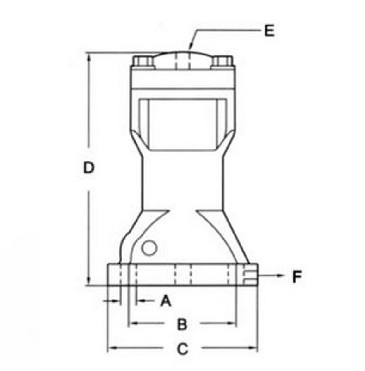

DIMENSION
| Dimension |
| Model |
A |
B |
C |
D |
E |
F |
| BVS-30 |
9 |
6.7 |
8.2 |
135 |
1/4''PT |
1/8''PT |
| BVS-40 |
11 |
77 |
98 |
175 |
1/4''PT |
1/8''PT |
| BVS-60 |
12.5 |
110 |
143 |
220 |
1/4''PT |
1/4''PT |
| BVS-80 |
17 |
140 |
170 |
275 |
3/8''PT |
3/8''PT |
| BVS-100 |
18.5 |
150 |
195 |
310 |
3/8''PT |
3/8''PT |
TECHNICAL DATA
| Model |
Parameter |
| Pressure Mpa |
Impact force, kg'M/S |
Impact Energy(N.M) |
Weight,kg |
| BVS-30 |
0.3~0.7 |
1.2~1.9 |
5.5~13.1 |
1.3 |
| BVS-40 |
0.3~0.7 |
2.7~4.2 |
9.2~23 |
2.2 |
| BVS-60 |
0.3~0.7 |
7.0~11.2 |
20.6~49 |
5.6 |
| BVS-80 |
0.4~0.6 |
15.5~24.2 |
45.1~109 |
11.5 |
| BVS-100 |
0.5~0.7 |
30.2~48.5 |
60.5~220.2 |
18 |
|
|
